Black Forest // Forest Pack Pro to Unreal Engine 5 Bridge

Black Forest is a high-speed production bridge engineered to transfer massive Forest Pack Pro scatters from 3ds Max directly into the Unreal Engine 5 Level Editor. It automates origin pivot normalization, complex shader baking, and native generation of Nanite and HISM instances.

BlackForest Unreal Engine 5 UI Interface

BLACKFOREST BRIDGE SUITE PIPELINE CORE

Automated Discovery & Extraction

Forest Discovery

Scans the 3ds Max scene to automatically identify all source meshes referenced by Forest Pack Pro (v7/8/9) objects. Eliminates any need for artists to manually isolate, select, or export geometries.

Intelligent Material Baking

Baking Engine

Traces material trees across V-Ray, Corona, and Physical Material. Flattens complex nodal trees (Mix, ColorCorrection) and neutralizes view-dependent Falloff nodes via direct 2D rendering (rt.renderMap) without slow third-party dependencies.

Native UE5 Nanite & HISM Ingestion

C++ Slate Subsystem

A native C++ Editor Subsystem for Unreal Engine 5 (5.5, 5.6, and 5.8) reads the optimized binary stream (.bfbin) and imports geometries with Nanite enabled, deploying Hierarchical Instanced Static Mesh (HISM) actors organized into World Outliner folders with full Undo/Redo transaction support.

Botanical Master Materials

Two-Sided PBR

Automatically instantiates M_BlackForest_Foliage_TwoSided and M_BlackForest_Bark_Opaque. Couples two-tone desaturation directly with Subsurface Scattering (SSS) color, guaranteeing realistic backlight transmission without luminance clipping.

Stack: Python 3.11+ (PySide6) ➔ C++ Editor Subsystem Format: .bfbin + manifest.forest.json Support: UE 5.5 - 5.8+

UI & Pipeline Showcase Screenshots & Interfaces

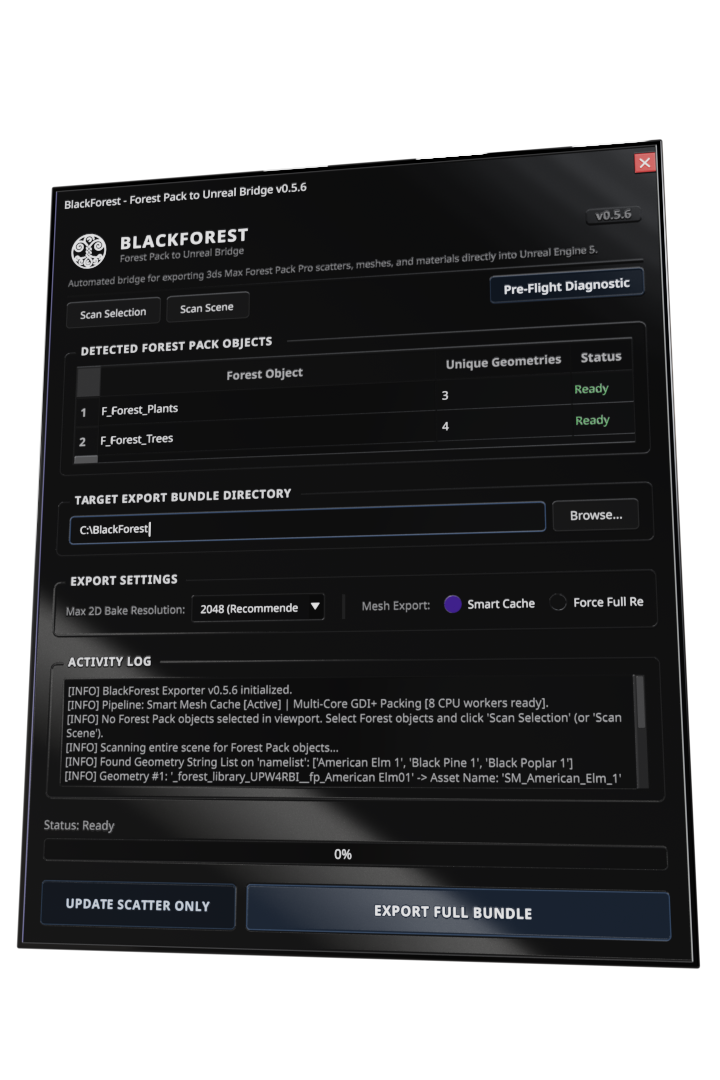

3ds Max Control Panel

Dedicated interface for 3ds Max. Real-time pre-flight diagnostics, Forest Pack entity discovery, and clean bundle packaging.

✓ Supports 3ds Max 2024, 2025, 2026, and 2027

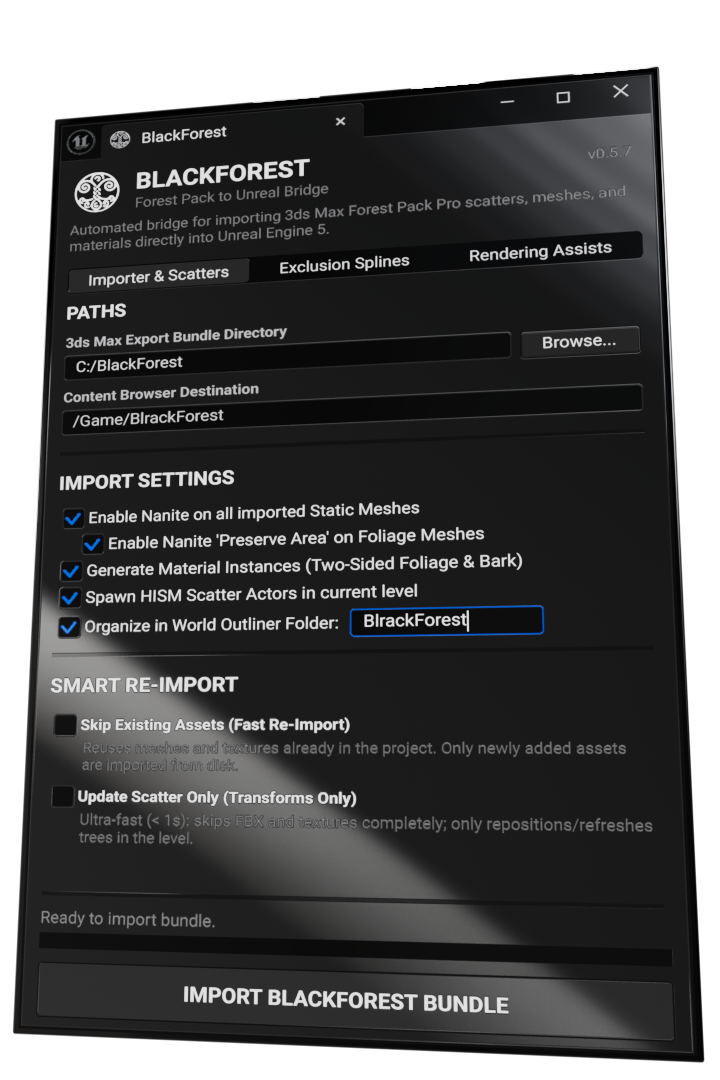

C++ Editor Subsystem in Unreal Engine 5

Native Slate dialog for Unreal Engine. Fast bundle ingestion, Nanite mesh conversion, and HISM deployment.

✓ Compiled binaries for UE 5.5, 5.6, and 5.8

Real-Time In-Engine Viewport

Direct viewport rendering featuring Nanite foliage, Lumen dynamic lighting, and calibrated botanical Subsurface Scattering.

✓ Calibrated Two-Sided Shading

Workflow Overview

The 2-Step Pipeline

Structured export in 3ds Max and optimized binary ingestion in Unreal Engine 5.

Step 01 // 3ds Max

Export Forest Bundle

Select your Forest Pack Pro objects in your scene and launch BlackForest from your toolbar.

Pre-Flight Diagnostics: Audits scene units, coordinate space, and source meshes before packaging.
Geometry Processing: Isolates and prepares source meshes for clean FBX batch export.
Nodal Baking: Flattens complex V-Ray and Corona shader trees (Falloff, Mix, ColorCorrection).
Generated Bundle: Exports FBX meshes, baked textures, and the .bfbin binary stream.

Step 02 // Unreal Engine 5

Import Forest Bundle

Click the BlackForest icon in the Unreal Engine Level Editor toolbar.

Select Bundle: Point to the generated folder and specify your Content Browser destination.
Nanite & HISM: Imports meshes with Nanite enabled and generates optimized HISM actors.
Master Materials: Automatically instantiates botanical shading with calibrated transmission.
Clean World Outliner: Organized folder hierarchies with full transaction support (Undo/Redo).

Technical Specifications

Compatibility Matrix

Rigorously validated across production environments.

Platform / Software	Supported Versions	Modules & Technologies	Certification Status
Autodesk 3ds Max	2024, 2025, 2026, 2027	Python 3.11+, PySide6, `pymxs`	✓ Certified
Forest Pack Pro	v7.x, v8.x, v9.x (iToo Software)	Distribution, rotation, and scale extraction	✓ Certified
Epic Games Unreal Engine	UE 5.5, UE 5.6, UE 5.8	C++ Editor Subsystem, Slate UI, Nanite, HISM	✓ Ready Binaries
Source Render Engines	V-Ray, Corona, Physical Material, Arnold	PBR extraction of Albedo, Roughness, Normal, and Opacity	✓ Auto Discovery
Operating System	Windows 10 / Windows 11 (x64)	Drag & Drop Installer (`.mzp`)	✓ Plug & Play
